Description

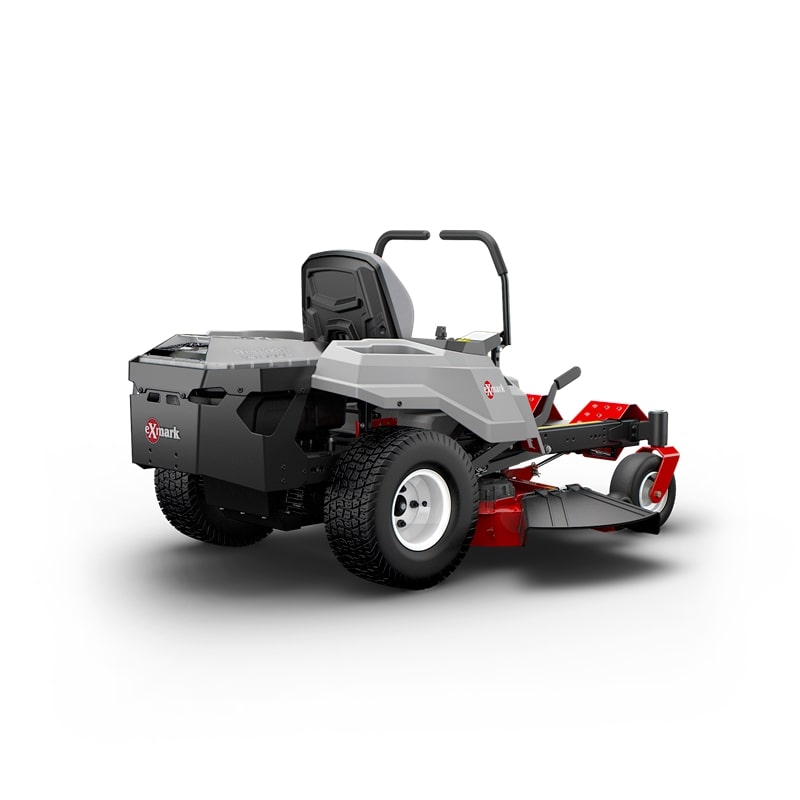

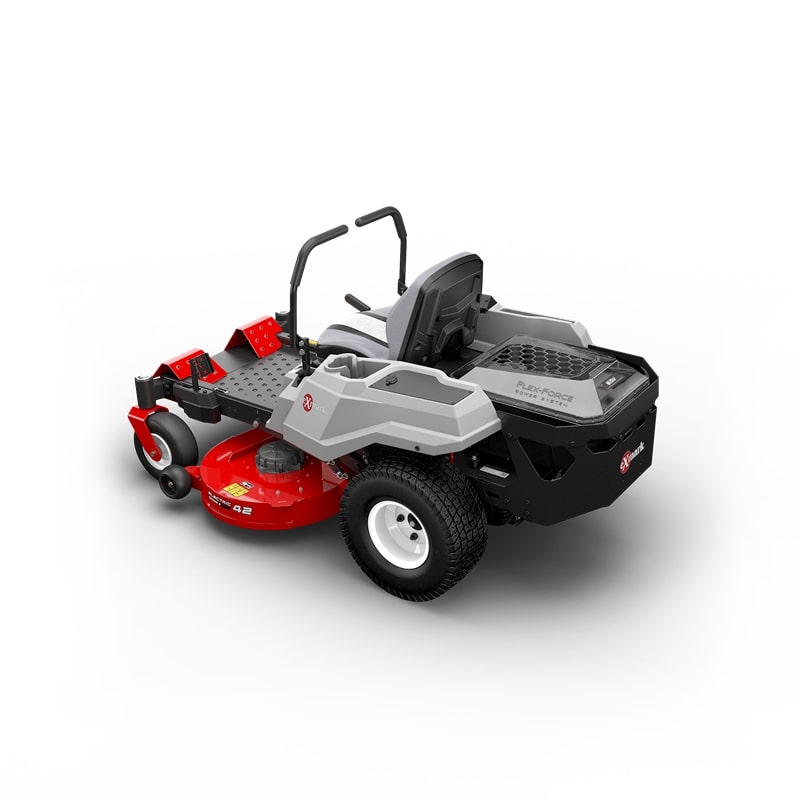

The new Quest V-Series takes electric residential zero-turn mowers to the next level, with the commercial features and performance you expect from Exmark. The electric drivetrain and 42-inch Electric Series 2 cutting deck provide instant torque, while eliminating all belt-related maintenance. The Quest V-Series provides 60 minutes of runtime on four 10-Amp Flex-Force batteries, with the ability to add up to two more batteries for extended runtime.

The low center of gravity design, large drive and caster tires and comfortable operator seat keep you comfortably in control, with increased legroom for the operator. A standard deck step eases mounting and dismounting of the Quest V-Series. Maintenance is minimized with the electric powertrain, integrated hydro transmissions and just two annual grease points.

If you're looking for an electric zero-turn mower with the durability and cut quality of an Exmark, you've found it in the new Quest V-Series.

Looking for a larger, more powerful electric zero-turn mower

Specifications:

Power & Electrical

• Fuel Type: Battery (60V Flex-Force system)
• Fuel Capacity: 6-pod 12A Rapid Charger with dual charge modes
• Fuel System: Electric
• Electrical System: 60V Flex-Force
• Battery Drive System: General Transmission EZ 2000
• Transmission Brand: General Transmissions
• Transmission Type: Electric
• Speed Control: Infinitely variable
• Forward Speed: 0–7.0 MPH
• Reverse Speed: 0–3.5 MPH
• PTO Engagement: Electric switch
• Carb Compliant: No

Chassis, Frame & Steering

• Steering Control: Hydraulically dampened twin levers; adjustable fore/aft and height (2 positions)
• Frame: Unibody riveted 10-gauge steel
• Caster Forks: 0.25" thick caster yoke arms
• Front Caster Tires: 11 x 4.0-5 pneumatic smooth tread
• Drive Tires: 18 x 7.5-8 Turf Tech TL
• Parking Brake: Foot pedal-actuated

Deck & Cutting System

• Cutting Deck Width: 42"
• Deck Style: Floating
• Deck Construction:
• Top Plate: 10-gauge formed & welded steel
• Side Skirt: 12-gauge
• Bumper: 7-gauge welded steel
• Suspension: 3-point
• Deck Style Description: Series 2 fabricated; side discharge standard (optional mulch or bag)
• Blade Spindles: 7.25" cast aluminum electric motor
• Blades: 2 blades (21.6" length each)
• Blade Tip Speed: ~17,000 FPM
• Cutting Heights: 1.5" to 4.5", in 0.5" increments
• Deck Lift: Manual lever – adjusts height and raises deck

Dimensions & Weight

• Length: 75.0"
• Width (overall): 53.8"
• Height: 45.6"
• Curb Weight: 475 lbs

Operator Features

• Seat: 16" high-back seat without armrests
• Adjustment: 3" fore/aft via sliding mount (requires loosening bolts)
• Mounting: Hinged with spring suspension
• Optional Feature: Armrests
• Standard Features: Hour meter, lights, cup holder, hitch, USB plug-in

Safety & Compliance

• Safety Package: Operator Presence Control (OPC) and drive system interlock
• ROPS: Optional rigid ROPS with seatbelt and latch
